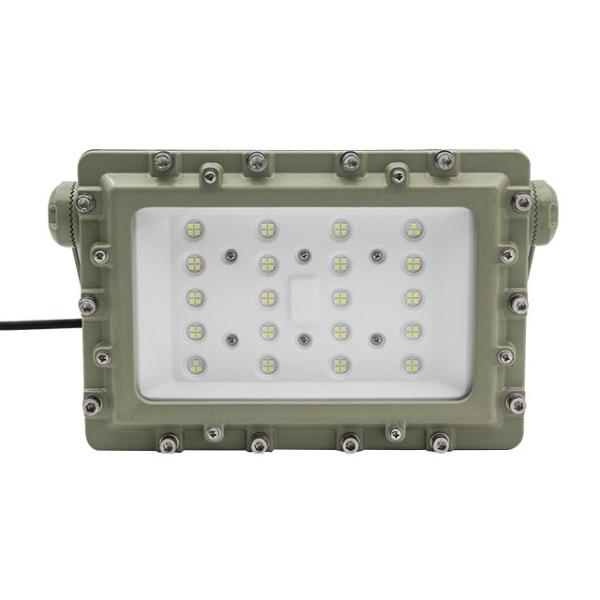

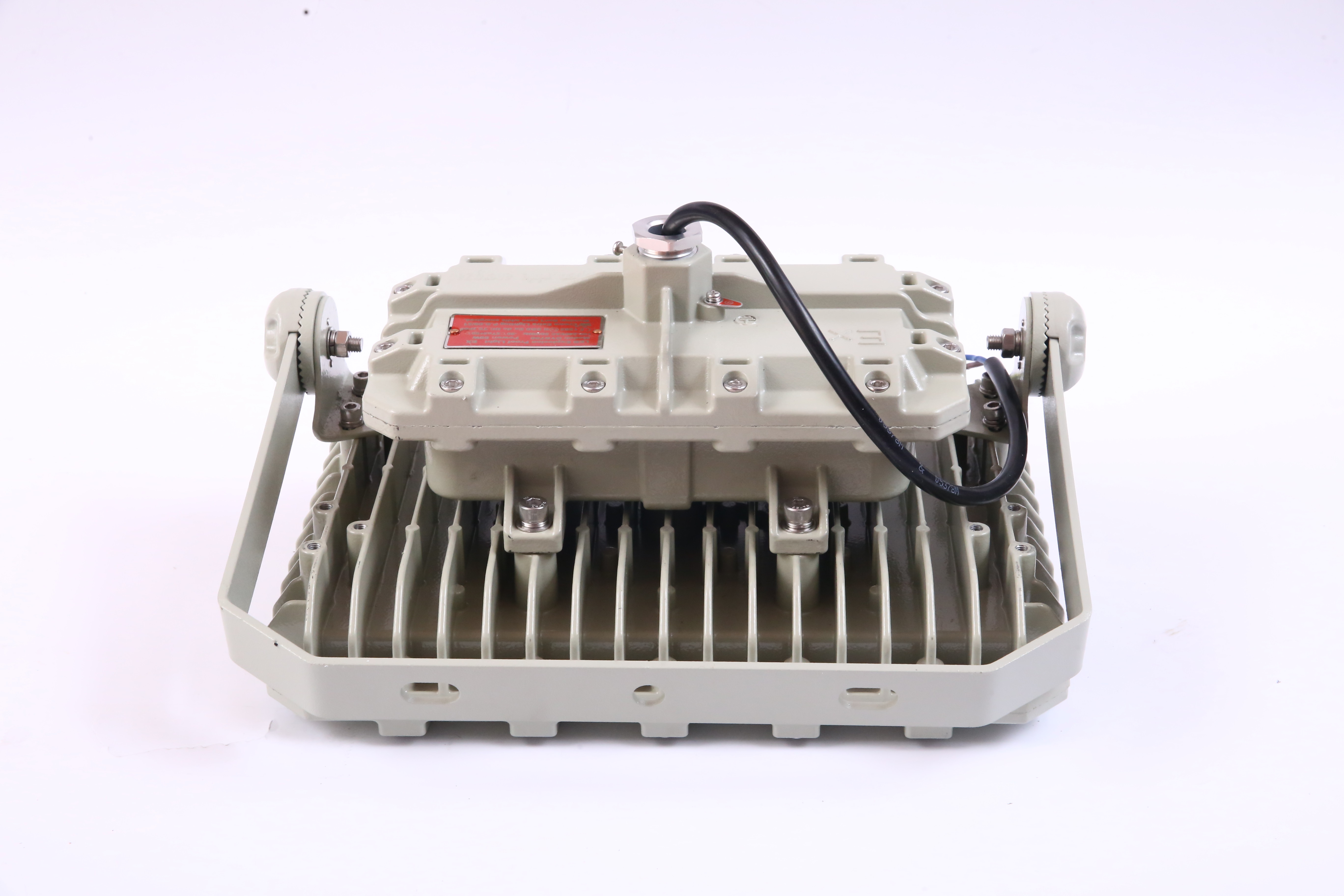

Chemicals Zone Led Street Light Explosion Proof Flood Light

Name: Chemicals Zone Led Street Light Explosion Proof Flood Light
Brand: Crown Extra
Price: 25 USD

Brand Name : Crown Extra

Model Number : GYD720

Certification : ATEX,CE,ROHS

Place of Origin : JIANGSU,CHINA

MOQ : 1pcs

Price : usd25-95 per piece

Payment Terms : T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 50000pcs/month

Delivery Time : 5-8 work days

Product name : Explosion Proof LED Flood Light

Input Voltage(V) : 230 VAC

Lamp Luminous Efficiency(lm/w) : 150

Color Rendering Index(Ra) : 70

Working Time (hours) : 50000

Driver : MEANWELL

LED chip : CREE

For use in : Zone 1,2 & 21, 22

Warranty time : 5 years

Contact Now

Ex Led For Chemicals Zone Led Street Light Explosion Proof Flood Light

Features:

Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
High strength toughened glass cover.
Exposed fasteners are of stainless steel with function of high corrosion-proof.
With grids to adjust lighting effect and reduce the glare.
Modular plug structure design, only need disconnect end cover draw out core to change tubes.
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.

Application:

Suitable for explosive gas environment Zone2.

Suitable for Hazarous dust area: Zone21, Zone22.

Can be used in the environment of temperature group for T1~T6.

Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Verious types terminals for options.


Specification:

Rated power50W,75W,100,120W,150W, 200W, 250W
Lumen efficient125-135 LM/W
Beam angle120° (60°, 90° is optional)
Protection degreeIP66
Color temperature5700
Mounting Styles
Ceiling; Wall Bracket; Pendant
Rated voltage
100-277VAC, 50-60Hz
For use in
Zone 1, 2 & Zone 21, 22
Cable entry
G 3/4”


Installation Instructions:
Before installation, check voltage, power and other parameters carefully and make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally

 Company introduction:

Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.


FAQ:

1. How do you ensure your products quality and service?
All our production process strictly adhere to ISO9001 procedure, and we also offer clients 3-5 years warranty from the date which B/L issued. If the products doesn’t work properly as promised, and the problem is caused by the quality issue, we will provide exchange service.

2. Can you make the products according to custom requirement?
Yes, we can provide bespoke service to custom exact specification. You can send us the detailed specification of the products you are in need and our engineer team will check whether it is workable for us. Or you can send us the samples and our engineer team can understand it better.

3. Can I just buy 1 pc of sample for testing before place the bulk orders?
Yes, samples orders are always welcome, we are confident on our lights quality and we believe that you will place bulk order to us once you test our samples.
